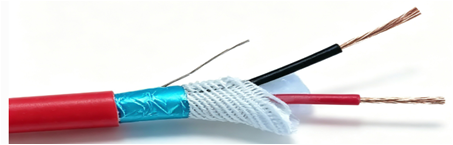

2Cx14AWG LSZH Shielded Fiberglass Fire Alarm Cable
Physical Characteristics
Inner Conductor | Stranded BC (Bare Copper) |
Diameter of Conductor | 14AWG, 42/0.25mm |
Dielectric | PVC insulated, FR(fire retardant) |
Drain Wire | Yes |
Filling Material | Fire proof glass fiber net |
Shield | Aluminum Foil |
Rip Cord | Yes |
Outer Jacket | PVC compound, FR(fire retardant), rated at -20 to +80℃ |
Jacket Color | Red RAL3000 |
Overall Diameter | 5.4mm±0.1mm nom. |
Mechanical Properties
Minimum bend radius | 20xD |
Installation Temperature | -20 to + 80°C |
Storage temperature | -20 to + 60°C |
Operating temperature | -20 to + 80°C |
Total weight | 64 kg/km nom. |
Packing Information:
100m coil roll
200m/250m plastic reel
300m/500m wooden drum
