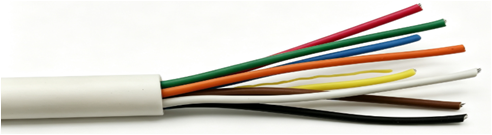

Diameter of Conductor

7x0.25mm±0.02 (22AWG)

Dielectric

PE insulated

Drain Wire

N/A

Shield

Aluminum Foil, 120% coverage

Rip Cord

Yes

Outer Jacket

PVC compound, FR(fire retardant), rated at   -20 to +80℃

Jacket Color

White

1

Black

6

Blue

11

White/Black

16

White/Orange

21

Black/Blue

2

Red

7

Orange

12

White/Red

17

White/Yellow

22

Black/Orange

3

Green

8

Yellow

13

White/Green

18

White/Purple

23

Black/Yellow

4

White

9

Purple

14

White/Brown

19

White/Grey

24

Black/Grey

5

Brown

10

Grey

15

White/Blue

20

Black/Red

No. of Cores

Construction

Jacket Thickness

Overall Diameter

2 Cores

Cabling together

0.6mm ±0.05mm

3.0mm±0.1mm

4 Cores

Cabling together

0.6mm ±0.05mm

3.6mm±0.1mm

6 Cores

Cabling together

0.6mm ±0.05mm

4.5mm±0.1mm

8 Cores

Cabling together

0.6mm ±0.05mm

4.5mm±0.1mm

10 Cores

Cabling together

0.7mm ±0.05mm

6.0mm±0.1mm

12 Cores

Cabling together

0.7mm ±0.05mm

6.0mm±0.1mm

16 Cores

Cabling together

0.8mm ±0.05mm

7.0mm±0.1mm

20 Cores

Cabling together

1.0mm ±0.05mm

8.0mm±0.1mm

24 Cores

Cabling together

1.0mm ±0.05mm

8.6mm±0.1mm

Insulation Resistance

100MΩ*km min.

Velocity of propagation

55% nom. @1kHz

Dielectric Strength

1500v rms min/ 1 minute

Continuous Working Voltage

60V rms Max.
