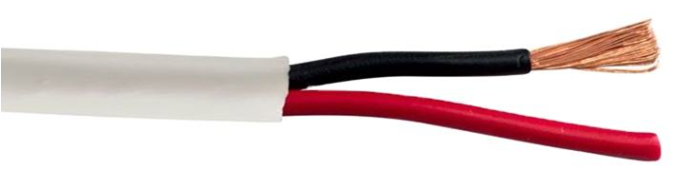

Cable Type: 2x16# PVC Insulated and Jacketed 60V Audio Cable
Physical Characteristics
Conductors | Stranded 2Cx16AWG BC (Bare Copper) |
Insulation type | PVC red&black |
Insulation OD | 2.15mm |
Outer Jacket | PVC white, fire resistant |
Overall Diameter | 5.6mm |
Mechanical Properties
Bend Radius | 6xOD |
Operation Temperature range | -20℃to +60℃ |
Installation Temperature range | -20℃to +60℃ |
Electrical Properties
DC Resistance of conductors | 13.9Ω/KM max |
Dielectric strength | 2000v rms min/ 1minute |
Jacket Dielectric Strength | 5000v rms min/1 minute |
Velocity of propagation | 55% nom. @1kHz |
Continuous working voltage | 60V rms max. |
Available Gauge: 22AWG, 20AWG, 18AWG, 16AWG, 14AWG, 12AWG
Available Cores: 2 cores, 4 cores
Packing Information:
Cable Length | Packing |
250ft | Pull box |
500ft | Pull box |
305m | Wooden Drum |
500m | Wooden Drum |
