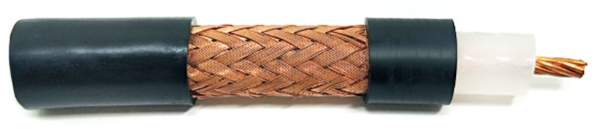

Cable Type: Wifi Antenna RF Coaxial Cable 50ohm RG8 PVC Jacket
Physical Characteristics
Inner Conductor | Stranded bare copper |
Diameter of Conductor | 7x0.75mm |
Dielectric | Solid HDPE, OD=7.24±0.15mm |
Shield #1 | Braiding 192x0.16mm Bare Copper, 94% min. coverage |
Outer Jacket | UV resistant PVC compound |
Jacket Color | Black |
Overall Diameter | 10.3±0.2mm |
Mechanical Properties
Minimum bend radius | 120 mm |
Installation Temperature | -40 to + 80°C |
Storage temperature | -40 to + 80°C |
Operating temperature | -40 to + 80°C |
Total weight | 150 kg/km nom. |
Electrical & Transmission Properties @ 20°C
Characteristic Impedance | 50±2Ω @ 1-400MHz |
Capacitance | 101±3 Pf/m @ 1kHz |
Velocity of propagation | 66% nom. |
DC Resistance of Inner Conductor | 6.28Ω/ km Max. |
DC Resistance of Outer Conductor | 31.6Ω/ km Max. |
Continuous Working Voltage | 4000 V rms Max. |
Dielectric Strength | 6000 V rms Min. |
Jacket Spark Test | 5kV rms Min. |
Jacket Dielectric Test After Cold Bend | 5kV rms Min. |
Attenuation
Frequency MHz | Max.Attenuation Db/ 100m |
1 | 0.60 |
10 | 2.00 |
50 | 4.90 |
100 | 6.90 |
200 | 9.80 |
400 | 15.40 |
Packing Information:
305m Wooden Drum
500m Wooden Drum
1000m Wooden Drum
1500m Wooden Drum
