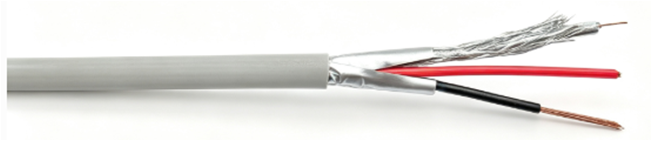

RG174 50Ω Coaxial Cable with 2C Power
Physical Characteristics
Coaxial RG174
Inner Conductor | Soild Bare Copper |
Diameter of Conductor | 0.5mm±0.02mm |
Dielectric | LDPE, OD=1.52±0.1mm |
Shield #1 | Braiding Bare Copper, 85% coverage |
Power Part
Conductor | 16x0.2mm (20AWG), 2 Cores |
Dielectric | LDPE |
Overall
Shield #2 | Aluminum Foil 100% coverage |
Outer Jacket | PVC |
Jacket Color | Grey |
Overall Diameter | 5.0mm±0.2mm |
Mechanical Properties
Installation Temperature | -40 to + 80°C |
Storage temperature | -40 to + 80°C |
Operating temperature | -40 to + 80°C |
Total weight | 31 kg/km nom. |
Electrical & Transmission Properties @ 20°C
Characteristic Impedance | 50±2Ω |
Operating frequency | 2 GHz max. |
Capacitance | 105±5 Pf/m @ 1kHz |
Velocity of propagation | 66% nom. |
DC Resistance of Inner Conductor | 317Ω/ km Max. |
Continuous Working Voltage | 1100V rms Max. |
Dielectric Strength | 2000 V rms Min. |
Jacket Dielectric Test After Cold Bend | 2kV rms Min. |
Attenuation
Frequency MHz | Max. Attenuation Db/ 100m |
100 | 38.30 |
200 | 50.50 |
400 | 82.00 |
1000 | 116.50 |
1500 | 157.20 |
2000 | 178.10 |
Note: all attenuation values are nominal calculated values with a ±15% tolerance.
Packing Information:
305m Wooden Drum, 500m Wooden Drum, 1000m Wooden Drum
