Hybrid UTP Cat.5e with 2C Power PVC Indoor Cable FIG-8

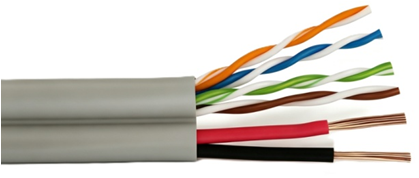

Cat5e UTP indoor cable, the cable contains 4 twisted pairs cabled together, and jacketed with PVC compound for indoor use. Plus 2DC cables with PVC insulated for power and control. Cable is jacketed in parallel FIG-8 formation ("Siamese")
Physical Characteristics
Inner Conductor | Solid 24AWG, bare annealed copper |
Insulation | HDPE, 1.0±0.05mm |
Number of Conductor | Twisted 4 pairs: Blue/White, Orange/White, Green/White, Brown/White |
Rip Cord | Yes |
Outer Jacket | PVC for indoor use |
Jacket Thickness | 0.5mm nom. |
Overall Diameter | 5.2±0.20 mm. |
Power Wires
Conductors | Stranded 20AWG, 18AWG or 16AWG |
Material | Coper Clad Aluminum (CCA) or Bare Copper (BC) |
Insulation | PVC |
Total number of wires | 2 |
Color code | Red, Black |
Jacket | PVC |
Overall Diameter | 5.2±0.20 mm. |
Mechanical Properties
Minimum bend radius | 8 x cable OD |
Installation Temperature | -20 to +60°C |
Storage temperature | -20 to +60°C |
Operating temperature | -20 to +60°C |
Pulling force | 70N Max. |
Electrical Properties
Impedance | 100±5 Ohm @ 0-1000* MHz |
DC Resistance | 9.5 Ohm/100m max. |
Insulation Resistance | 5000 MegaOhm*KM min. @500V DC/ 1m |
Capacitance | 5.6 NF/ 100m nom. |
Resistance Unbalance(core to core) | 2% max. |
Nominal Velocity of Propagation | 67% |
Dielectric Strength | 1000 V DC/ 1m |
Voltage rating | 60 Vdc max |
Packing Information
Cable Length | Packing |
305m | Pull Box |
500m | Wooden Drum |
